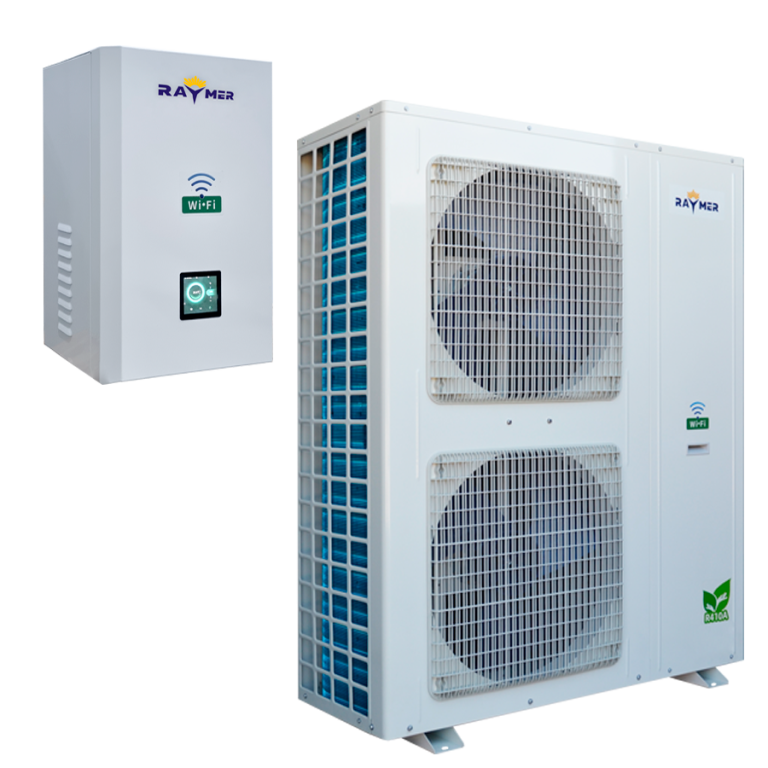

Inverter type heat pump split system with EVI compressor consists of two blocks hydromodule + outdoor unit.

Principle of operation “air-water” heating at temperatures up to -30° .

Opportunities: heating, cooling, WI FI option.

*The EVI Split DC inverter heat pump uses advanced EVI DC inverter heat pump technology to achieve high efficiency at the lowest temperatures. Convenient way to manage devices with WIFI intelligent control system.

Peculiarities:

2. Can be used for underfloor heating, fan coil units, water heater, as well as modern radiators.
3. Separate design with indoor water supply system, preventing the problem of freezing water.
4. Refrigerant R410A, ecologicaly clean.
5. Intelligent controller and LED display.
6. Operating ambient temperature up to -30 C .
7. Electronic Expansion Value precisely controls the refrigerant, so that the heat pump can operate with high efficiency in all conditions.
8: Smart control Wi-Fi
9. Auto defrost function.
10. Convenient for installation and maintenance.

DC inverter heat pump RAY-15DS1-EV (220V) designed for heating and hot water applications with high SCOP and ultra-quiet performance.

Operating modes with heating, cooling and hot water extend the life of the heat pump for the whole year. Intelligent controller offers users a simple and smooth operation.

Main functions

• There is 3 operating modeheat pump: heating, cooling and hot water. The combination of modes extends the use of Raymer DC inverter heat pumps for the whole year. Users can choose from the following modes.

-Heating

-Hot water

-Heating + hot water

-Cooling

-Cooling + hot water

Piping design and circuit layout:
our piping design effectively eliminates stress vibration points, avoids pipeline resonances, which ensures system durability and reduces system noise.
The scheme is neat, strong and weak electrical lines are clearly delineated, which is convenient for system installation and maintenance. Important heat exchange components and pipes are covered with thick insulation wool, to reduce heat loss in the system and ensure its efficient operation.

DIMENSIONS:

Features
